Features a built-in high-gain antenna array providing up to 8 dBi gain. The automated internal alignment continuously isolates the strongest 5G sub-6 GHz signals for maximum data throughput.
FastMile Gateway
FastMile Wi-Fi 6 gateways
Advanced multi-stream Wi-Fi 6 performance for busy, hyper-connected households
Trusted by leading companies
High-speed whole-home Wi-Fi 6 connectivity that sets up in minutes
High-gain antenna performance
Whole-home Wi-Fi 6 coverage
Equipped with integrated Wi-Fi 6 for local in-home connectivity. Managed and optimized by Corteca, it ensures seamless wireless routing without performance hiccups.
Dual radio connectivity
Leverages robust carrier aggregation to pair 4G and 5G spectrum bands together, pulling the strongest possible cellular pipeline into the home.
Scalable 8Rx hardware ready
Outfitted with an advanced 8-receive path architecture, offering operators greater network scalability and efficiency at the cell edge.
Operator application support
Built with an advanced computing architecture that supports isolated software application containers, allowing providers to deploy value-added services over time (Network security, parental controls, etc.).
Optional accessories
Customizable hardware configurations
The FastMile 5G Home Router 6 features an improved hardware and software architecture with its 6.1 variation that allows network operators to take advantage of upgrades which help with regional deployment requirements or specific enterprise applications:
- 8Rx high-gain antenna array: Upgrades internal cellular reception with an 8-receiver (8Rx) antenna configuration and high-gain array (up to 8 dBi), improving fringe-cell signal reception, 5G carrier aggregation, and uplink capacity.
- Expanded storage: Increases RAM and Flash headroom to execute containerized LXC microservices, localized security applications, and real-time network telemetry via TR-369/USP.
- Enhanced 3GPP Release 17 5G SA/NSA support: Broadens sub-6 GHz carrier aggregation (up to 200 MHz bandwidth) and EN-DC combination support for higher peak throughput and lower latency.
Onboarding & deployment
Plug-and-play simplicity
LED placement guidance
Features top-facing, dynamic LED directional arrows that actively measure real-time cell signals, guiding users to the best position for the router.
Instant network activation
Engineered for consumer self-installation using a standard physical Nano-SIM slot, meaning businesses can activate 5G service instantly without a professional technician.
Inseego Mobile App
Provides a simple, step-by-step visual setup guide on iOS and Android, automating local network activation and Wi-Fi configuration within minutes.
Intelligent band steer automation
Dynamically forces smart home products to the stable 2.4 GHz band while keeping high-speed gaming on the 5 GHz band
Built for superior performance & ease of deployment
01
02
03
Features & specifications
Features & specifications
SIM type
Single SIM (1x Nano 4FF)
Carrier certified
Certified across global operator networks
Cellular technology
Qualcomm Dragonwing FWA Gen 3
Qualcomm X72 modem
5G NR (SA/NSA)
4G LTE
3GPP Release 17 compliance
Max 200MHz aggregate bandwidth (3CC) in SA mode
Extensive EN-DC (E-UTRA-NR Dual Connectivity)
Support for Sounding Reference Signal (SRS)
Antenna Switching Diversity (ASDiv)
Bands supported
5G sub-6 GHz: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n48, n66, n71, n77, n78
4G LTE Cat 20 (DL) / Cat 18 (UL):
FDD: B2, B4, B5, B7, B12, B13, B25, B26, B66, B71
TDD: B38, B41, B42, B43, B46, B48
Wi-Fi technology
Wi-Fi 6 dual-band concurrent operation (802.11be)
4x4 MU-MIMO on 2.4 GHz & 5GHz (20/40/80/160 MHz RF bandwidth)
UL/DL MU-MIMO over OFDMA, MU-OFDMA, and 4K QAM encoding
Explicit beamforming support and intelligent channel selection optimization
Wi-Fi EasyMesh™ compliant architecture
128 Wi-Fi clients
Primary and guest network profiles with band steering and seamless roaming
Power
12V DC power supply
Typical power consumption: 26 W

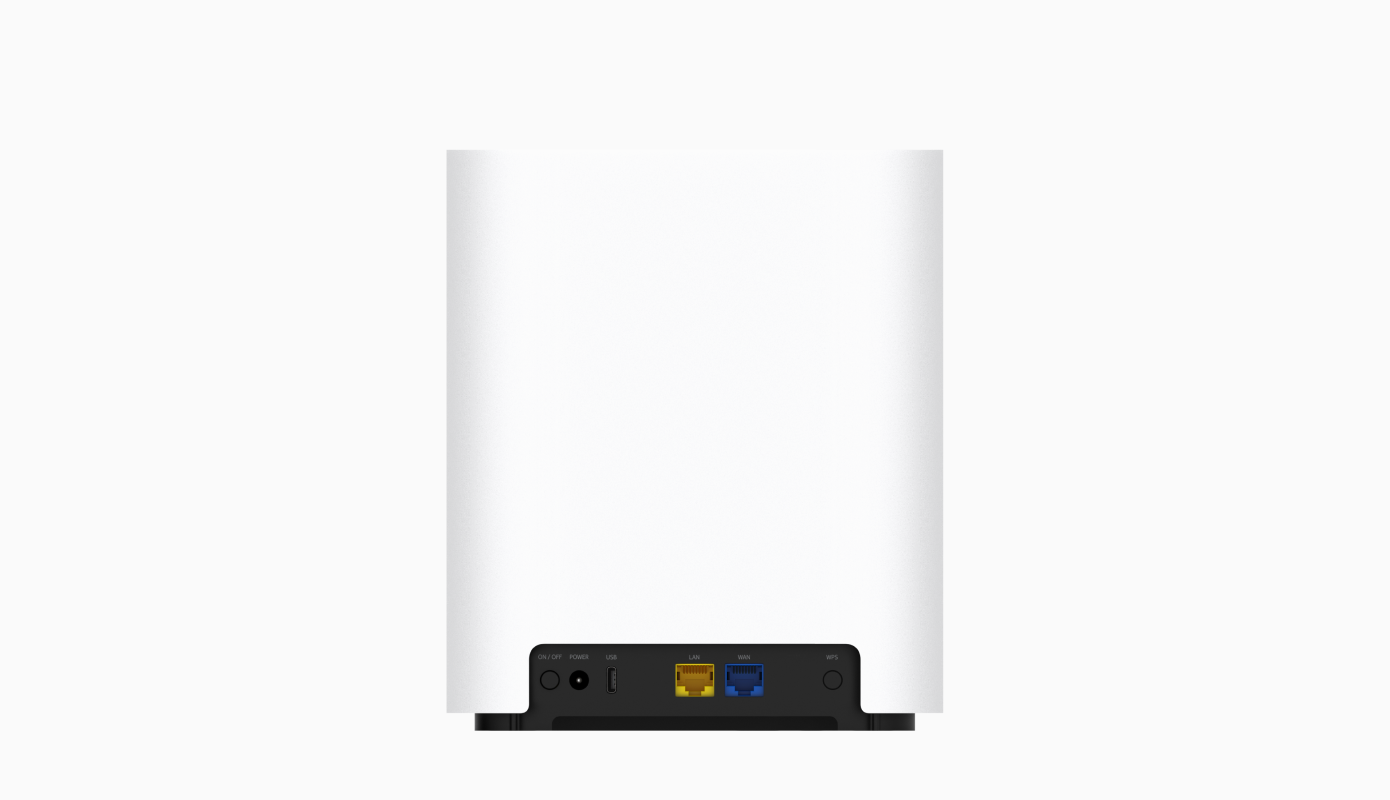

Ports
1x Gigabit Ethernet RJ-45 port WAN/LAN
2x Gigabit Ethernet RJ-45 ports dedicated LAN
1x USB 3.1 Type-C
Internal antennas
High-gain multi-band omnidirectional internal cellular antennas (up to 8 dBi peak gain)
Internal cell antennas (4x4 MIMO with 8Rx)
Internal Wi-Fi antennas (2x2 MU-MIMO)
2x optional cell SMA (2x2 MIMO)
Integrated high-performance Wi-Fi 7 antennas
Security features
Application ecosystem via Linux containers
TR - 069 & TR369 remote management security
Local web interface
Networking features
Dynamic WAN/LAN switching
Automated cellular failover
Layer 3 routing protocols (DHCP, NAT/PAT routing, DNS forwarding, etc.)
Built-in residential gateway based on OpenWRT HomeOS platform
Integrated 2 GB RAM and 8 GB Flash for LXC containerized application support
WPA support including WPA-PSK (TKIP, AES) and WPA3
Built-in and auto-enabled Access Control List (ACL) and firewall protection
Defense against common security threats and DOS attacks
Cloud-based network management
Inseego Connect remote management
Inseego Mobile™ app
Features & specifications
Product support
Help center
Our Help Center is a comprehensive resource designed to assist you with product queries and troubleshooting.
Product documentation
Product manuals, quick start guides and user guides, you’ll also find driver and firmware updates.
