Features a built-in multi-band omnidirectional high-gain antenna array providing up to 8 dBi gain. The internal architecture maximizes spectral assets to capture weak indoor signals for stable, high-speed data throughput.
FastMile gateways
FastMile Wi-Fi 7 gateways
High-performance tri-band Wi-Fi 7 capabilities for device-dense, hyper-connected households
Trusted by leading companies
Advanced tri-band Wi-Fi 7 performance for busy, hyper-connected households
High-gain antenna performance
Whole-home Wi-Fi 7 coverage
Integrates tri-band simultaneous Wi-Fi 7 (2x2 at 2.4 GHz + 4x4 at 5 GHz + 2x2 at 6 GHz) utilizing MU-OFDMA, 4K QAM, and explicit beamforming to deliver up to 5.76 Gbps wireless capacity and support up to 128 clients on a single setup.
Advanced dual connectivity
Maximizes network performance by combining 5G NR and 4G LTE signals through dual connectivity and carrier aggregation across up to 200 MHz of total bandwidth in Standalone (SA) mode.
Scalable variant configuration
Utilizes a powerful Qualcomm SoC-based platform with high-capacity 2 GB RAM and 8 GB Flash, optimizing the router to run complex, multi-gigabit cellular and local area network pipelines simultaneously.
Operator application support
Engineered with an OpenWRT HomeOS platform that supports native, isolated container frameworks (LXC), allowing service providers to easily deploy custom security, performance tools, and value-added end-user cloud applications over the air.
Accessories
Customizable hardware configurations
The FastMile Wi-Fi 7 gateways feature a modular hardware architecture that allows network operators to deploy tailored configurations based on regional deployment requirements or specific enterprise applications:
- Voice over IP (VoIP) & Voice over LTE (VoLTE): An optional physical TEL port (RJ-11) can be integrated to enable high-definition voice services directly through the router.
- Integrated GPS tracking: Built-in location services for precise geographical mapping, asset management, and network timing synchronization.
- eSIM capabilities: Supports factory-programmed or remotely provisioned eSIM profiles alongside the standard physical Nano-SIM slot for streamlined subscriber onboarding.
- Bluetooth integration: Built-in Bluetooth radio to support localized smart home device pairing and simplified initial mobile app provisioning.
Onboarding & deployment
Plug-and-play simplicity
LED placement guidance
Features top-facing, dynamic LED directional arrows that actively measure real-time cell signals, guiding users to the best position for the router.
Instant network activation
Engineered for consumer self-installation using a standard physical Nano-SIM slot, meaning businesses can activate 5G service instantly without a professional technician.
Inseego Mobile App
Provides a simple, step-by-step visual setup guide on iOS and Android, automating local network activation and Wi-Fi configuration within minutes.
Intelligent band steer automation
Dynamically forces smart home products to the stable 2.4 GHz band while keeping high-speed gaming on the 5 GHz band
Built for superior performance and ease of deployment
01
02
03
Features & specifications
Features & specifications
SIM type
Single SIM (1x Nano 4FF)
Carrier certified
Certified across global operator networks
Cellular technology
Qualcomm Dragonwing FWA Gen 3
Qualcomm X72 modem
5G NR (SA/NSA)
4G LTE
3GPP Release 17 compliance
Max 200MHz aggregate bandwidth (3CC) in SA mode
Extensive EN-DC (E-UTRA-NR Dual Connectivity)
Support for Sounding Reference Signal (SRS)
Antenna Switching Diversity (ASDiv)
Bands supported
5G sub-6 GHz: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n48, n66, n71, n77, n78
4G LTE Cat 20 (DL) / Cat 18 (UL):
FDD: B2, B4, B5, B7, B12, B13, B25, B26, B66, B71
TDD: B38, B41, B42, B43, B46, B48
Wi-Fi technology
Wi-Fi 7 dual-band concurrent operation (802.11be)
4x4 MU-MIMO on 2.4 GHz & 5GHz (20/40/80/160 MHz RF bandwidth)
UL/DL MU-MIMO over OFDMA, MU-OFDMA, and 4K QAM encoding
Explicit beamforming support and intelligent channel selection optimization
Wi-Fi EasyMesh™ compliant architecture
128 Wi-Fi clients
Primary and guest network profiles with band steering and seamless roaming
Power
12V DC power supply
Typical power consumption: 26 W

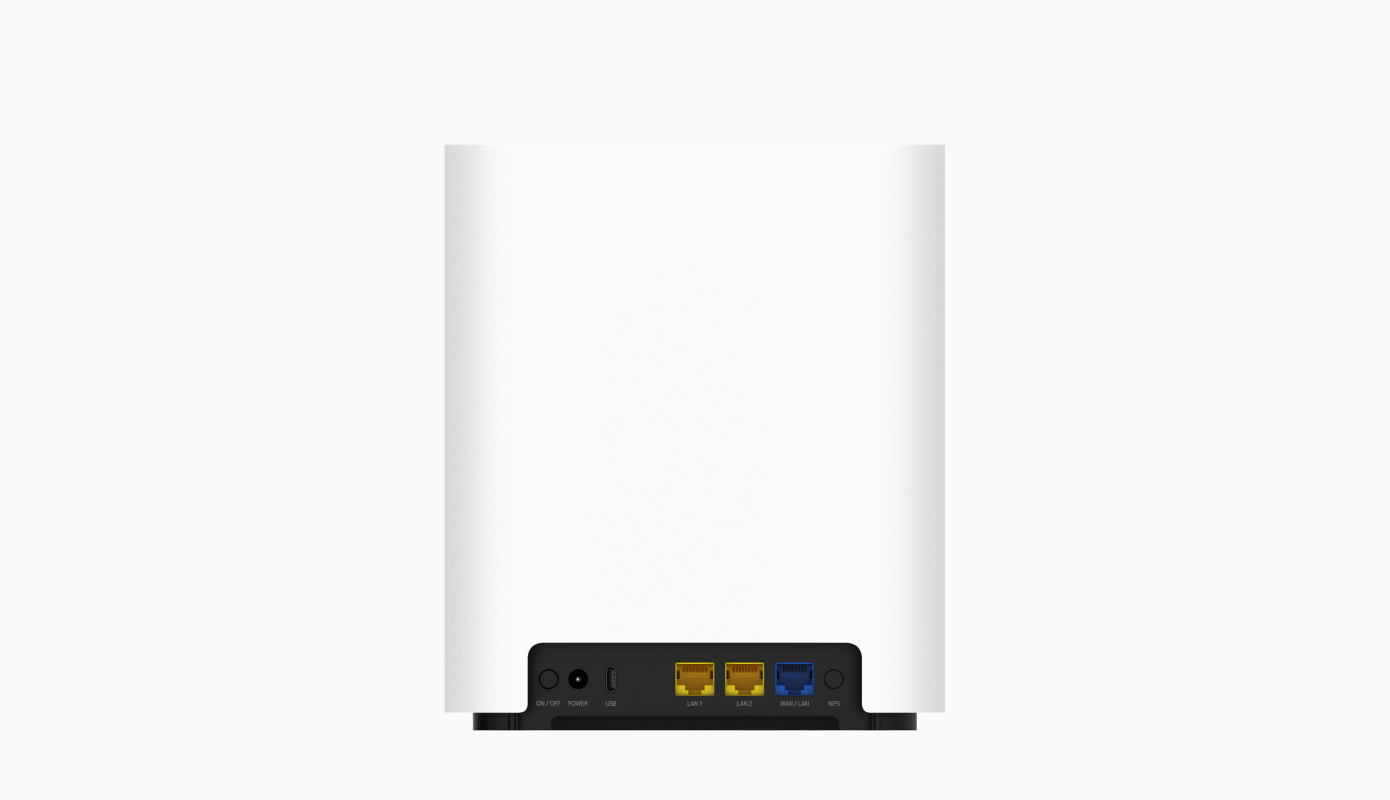

Ports
1x Gigabit Ethernet RJ-45 port WAN/LAN
2x Gigabit Ethernet RJ-45 ports dedicated LAN
1x USB 3.1 Type-C
Internal antennas
High-gain multi-band omnidirectional internal cellular antennas (up to 8 dBi peak gain)
Internal cell antennas (4x4 MIMO with 8Rx)
Internal Wi-Fi antennas (2x2 MU-MIMO)
2x optional cell SMA (2x2 MIMO)
Integrated high-performance Wi-Fi 7 antennas
Security features
Application ecosystem via Linux containers
TR - 069 & TR369 remote management security
Local web interface
Networking features
Dynamic WAN/LAN switching
Automated cellular failover
Layer 3 routing protocols (DHCP, NAT/PAT routing, DNS forwarding, etc.)
Built-in residential gateway based on OpenWRT HomeOS platform
Integrated 2 GB RAM and 8 GB Flash for LXC containerized application support
WPA support including WPA-PSK (TKIP, AES) and WPA3
Built-in and auto-enabled Access Control List (ACL) and firewall protection
Defense against common security threats and DOS attacks
Cloud-based network management
Inseego Connect remote management
Inseego Mobile™ app
