Powered by 360° high gain technology, FastMile 5Gmm receivers deliver ultra-fast, gigabit broadband speeds by tapping into the high-capacity mmWave spectrum, mitigating standard attenuation and line-of-sight constraints.
FastMile Receivers
FastMile mmWave receivers
Powerful high-band mmWave and CBRS outdoor broadband, engineered for maximum coverage, range, and throughput
Trusted by leading companies
Next-generation mmWave Fixed Wireless Access (FWA) managed with network-wide cloud orchestration
Industry-leading mmWave performance
Versatile urban-to-rural deployment
Highly scalable FWA solution capable of complementing dense city fiber networks, boosting suburban capacity via mid-band overlays, or reaching rural locations exceeding 10 km (LOS).
Zero-touch, guided installation
Rapidly deploy devices with Inseego’s Mobile app. Visual guidance and augmented reality tools identify optimal placements, minimizing installation errors and eliminating costly IT truck rolls.
Cloud-managed network orchestration
Fully integrated with Inseego’s cloud-based network management software suite, Inseego Connect, allowing operators to remotely monitor, manage, and optimize network health from a single centralized interface.
High-gain mmWave performance
Equipped with high-gain antennas delivering up to 28 dBi gain. Features intelligent auto-alignment in the FR2 (mmWave) spectrum to capture and lock onto high-capacity signals.
Dynamic environmental adjustment
Features advanced internal algorithms that rotate the antenna inside the device 360° to find the best signal in the environment, mitigating line-of-sight disruptions to maintain a stable, uninterrupted link.
Integrated CBRS spectrum support
Combines high-capacity millimeter-wave tracking with broad sub-6 GHz capabilities, featuring dedicated support for both 4G and 5G CBRS (Band 48/n48) spectrum to optimize network capacity.
App-guided installation
All the mmWave receivers also work with the Inseego Mobile App to provide simple, step-by-step visual setup and optimal positioning, ensuring the receiver captures the strongest available signal.
Accessory: Professional deployment kit
FastMile FWA mounting solutions
To support precise physical positioning across complex urban, suburban, and rural deployments, the FastMile mmWave receiver relies on heavy-duty, outdoor-rated mounting kits:

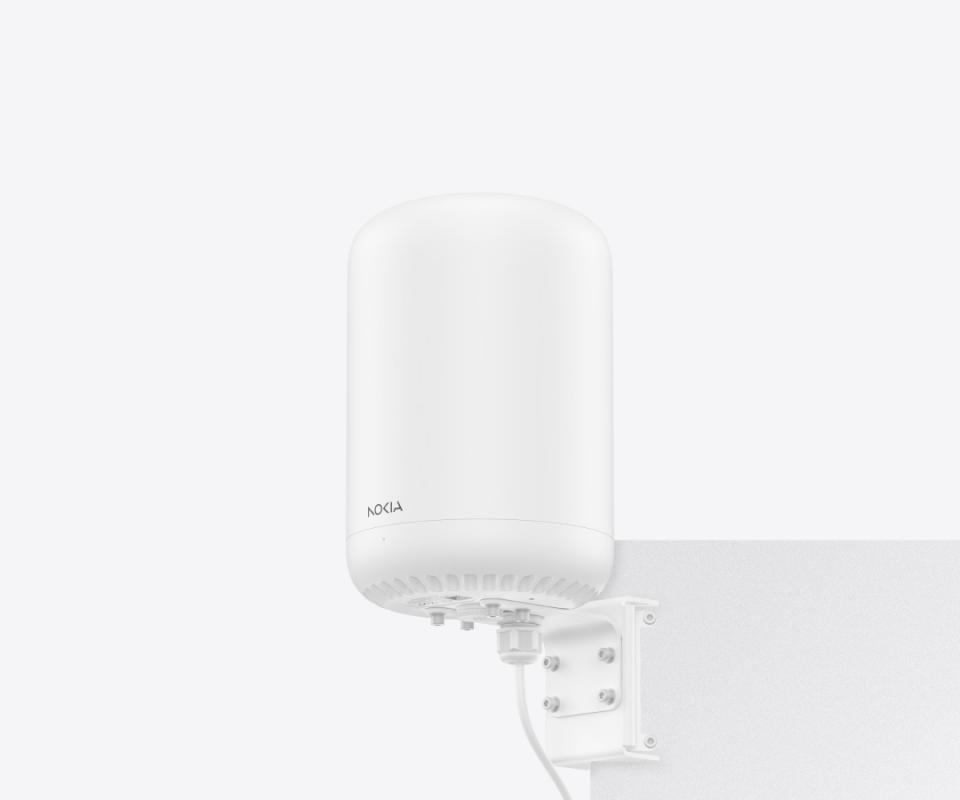

- Corner of wall mount kit: Specialized mounting assembly designed to wrap around exterior building corners, maximizing the unit's 360° sightlines and ability to capture reflections in dense urban non-line-of-sight (NLoS) environments.

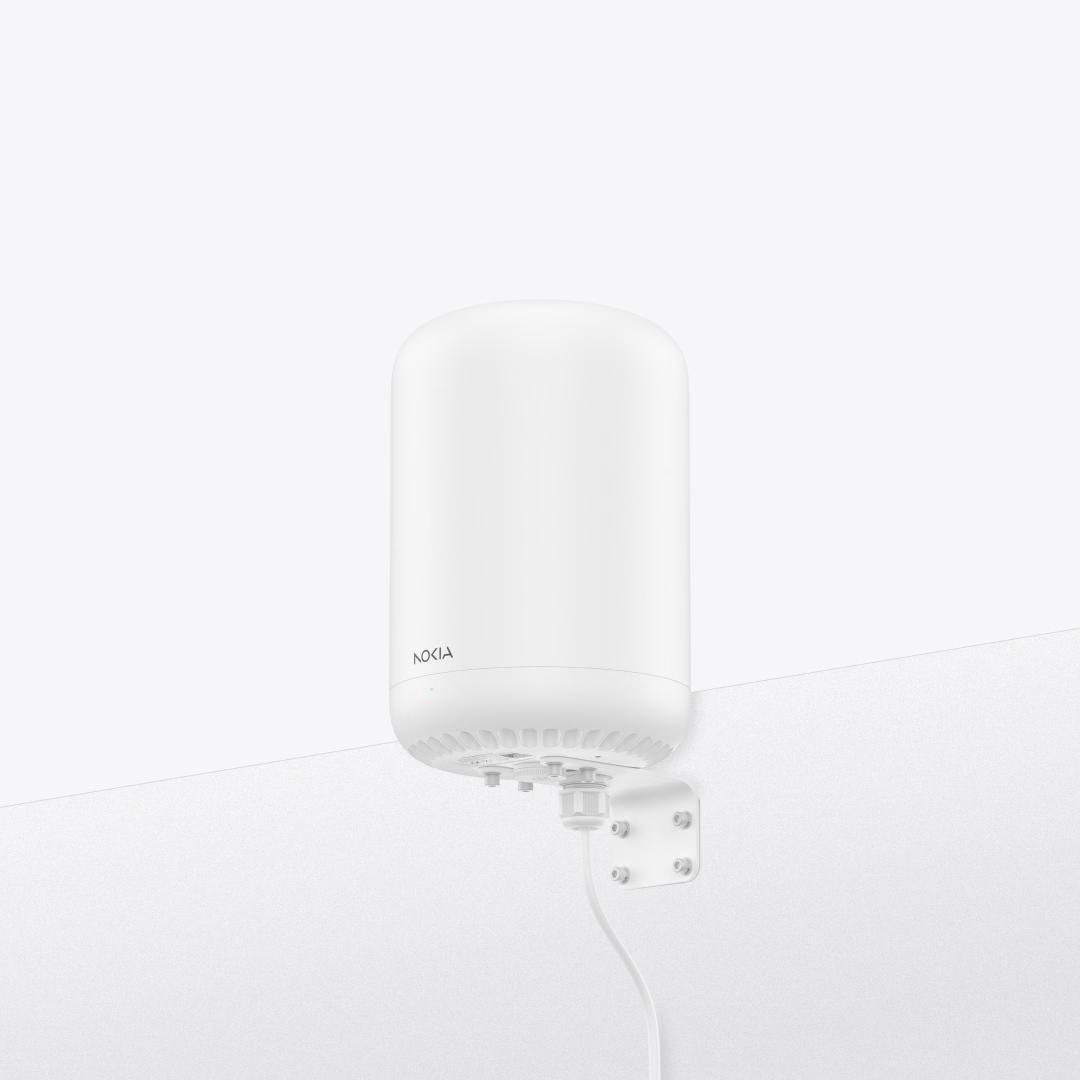

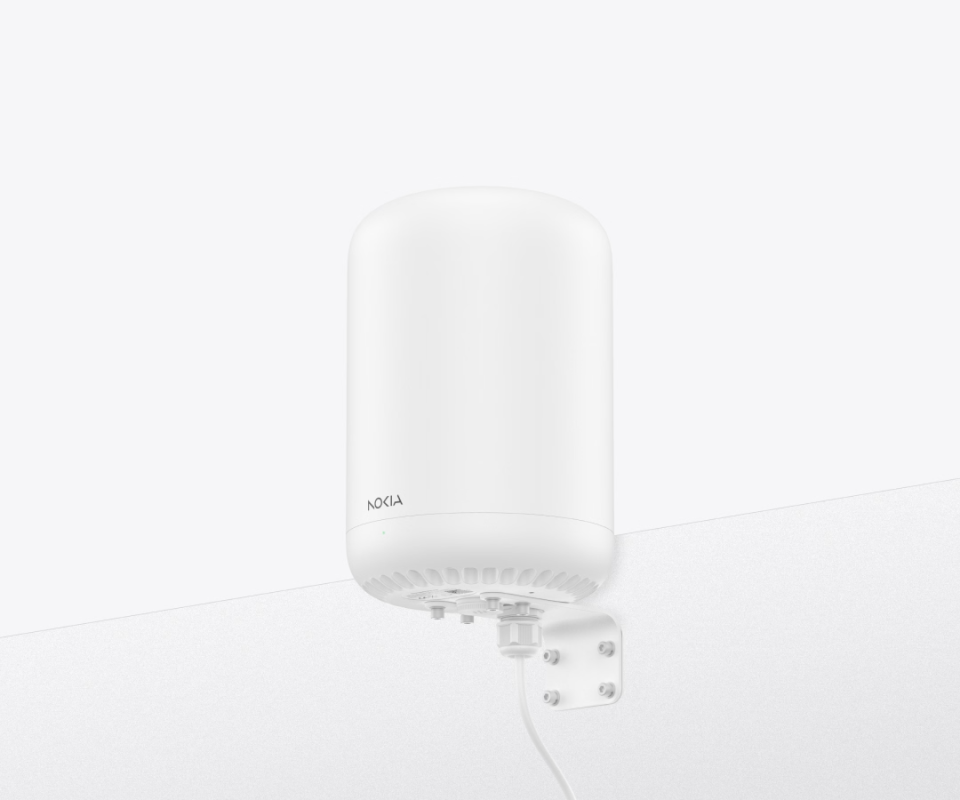

- Flat wall mount kit: Weather-hardened bracket assembly for securing the unit directly against exterior building walls, masonry, or wood siding.

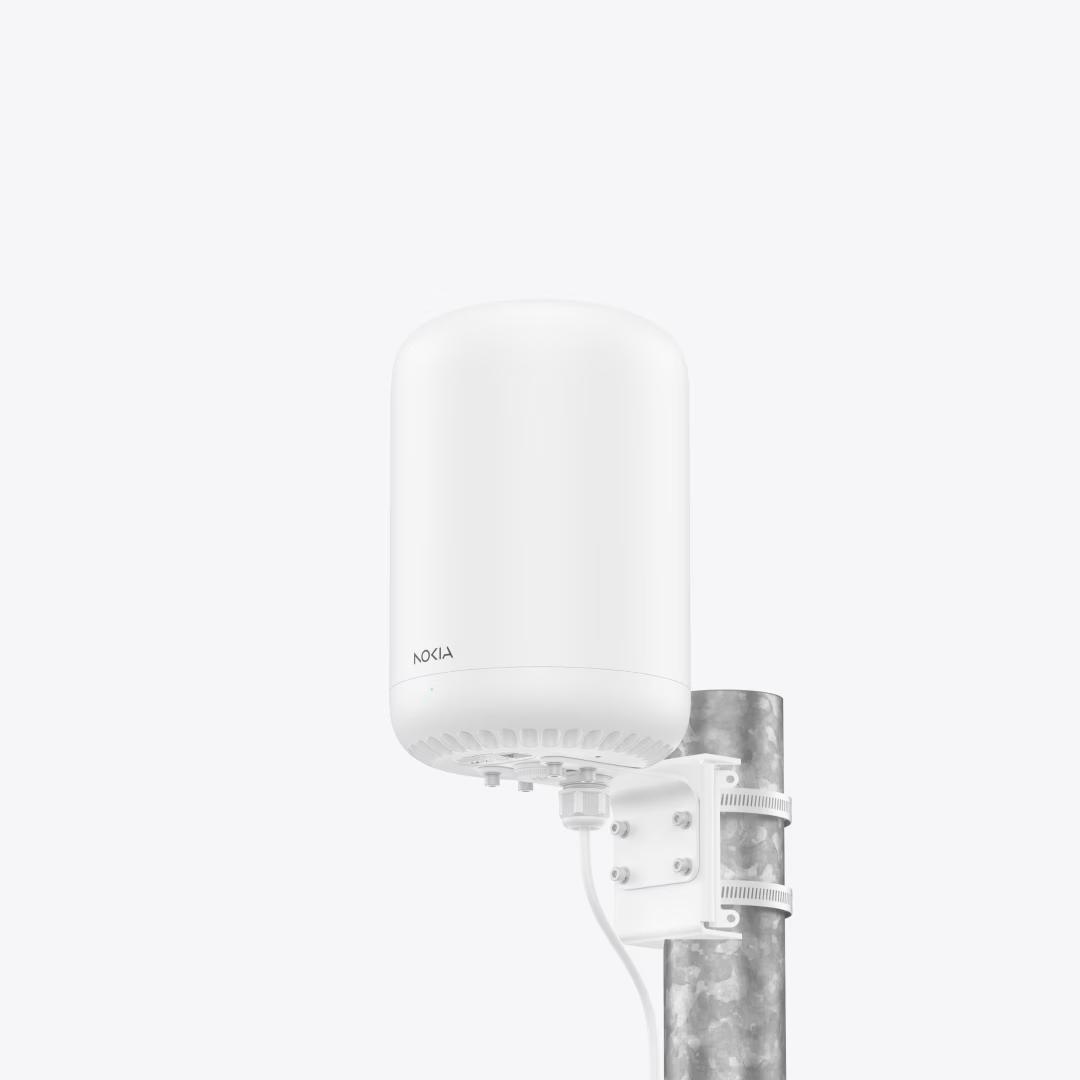

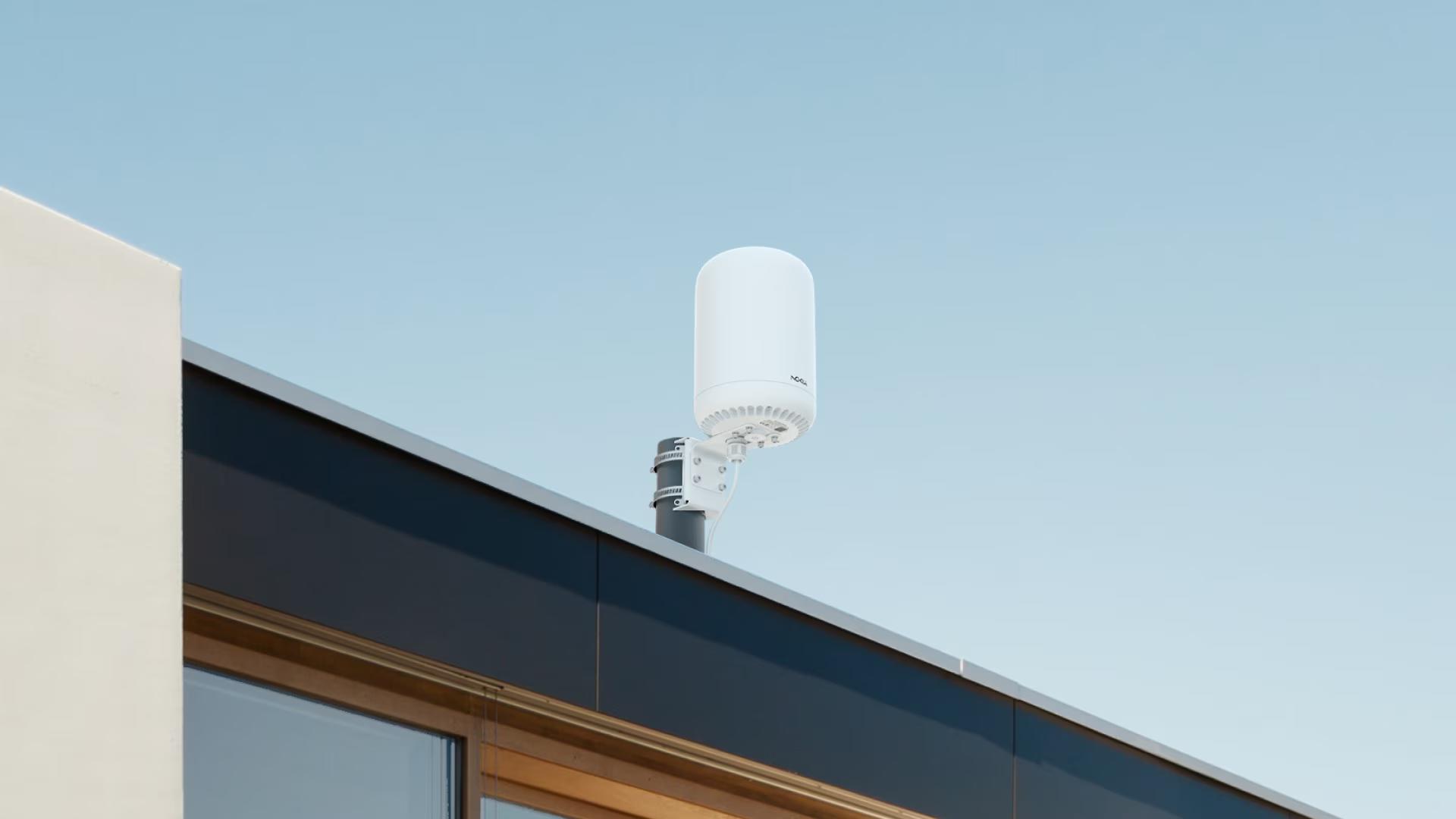

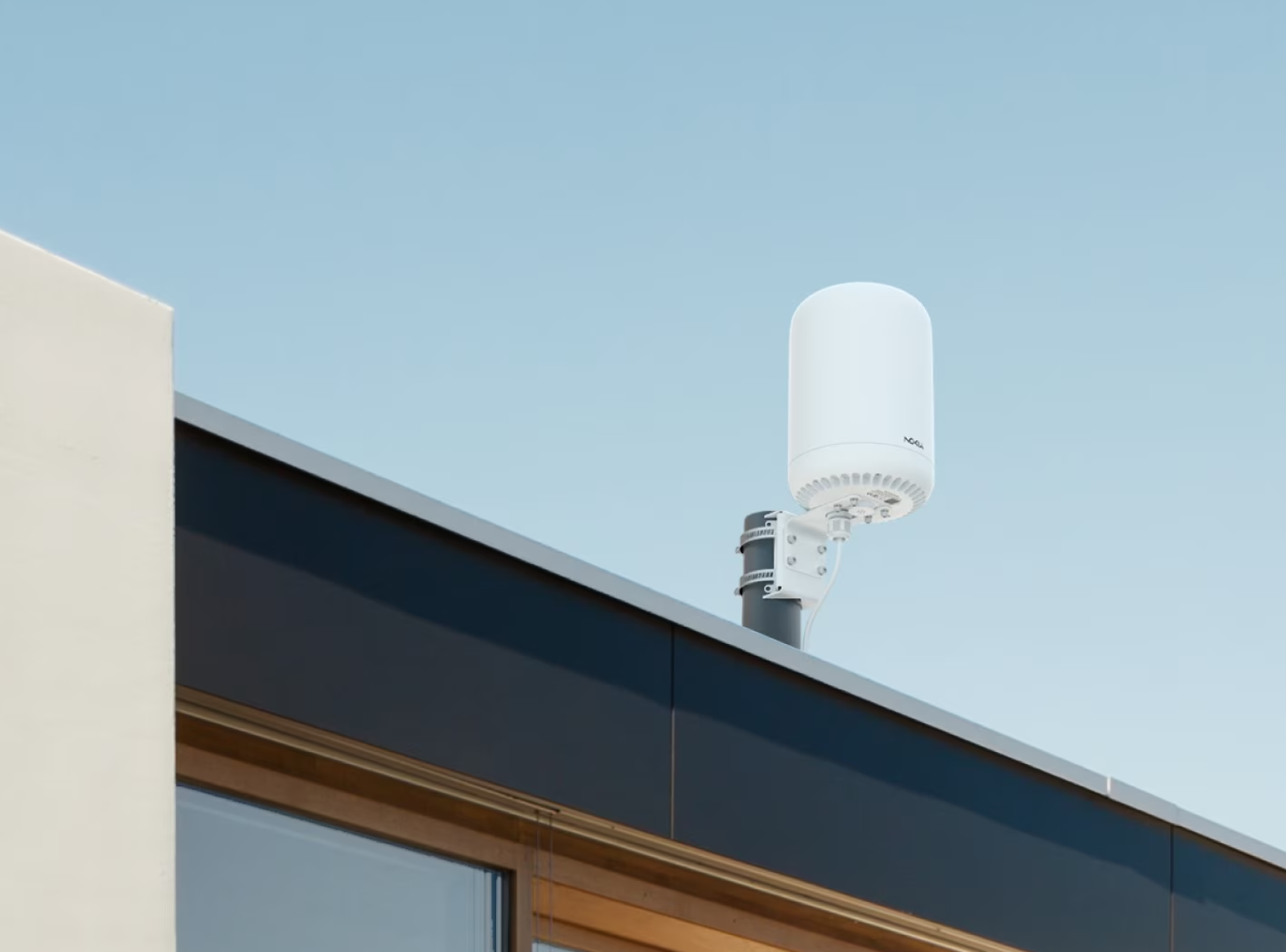

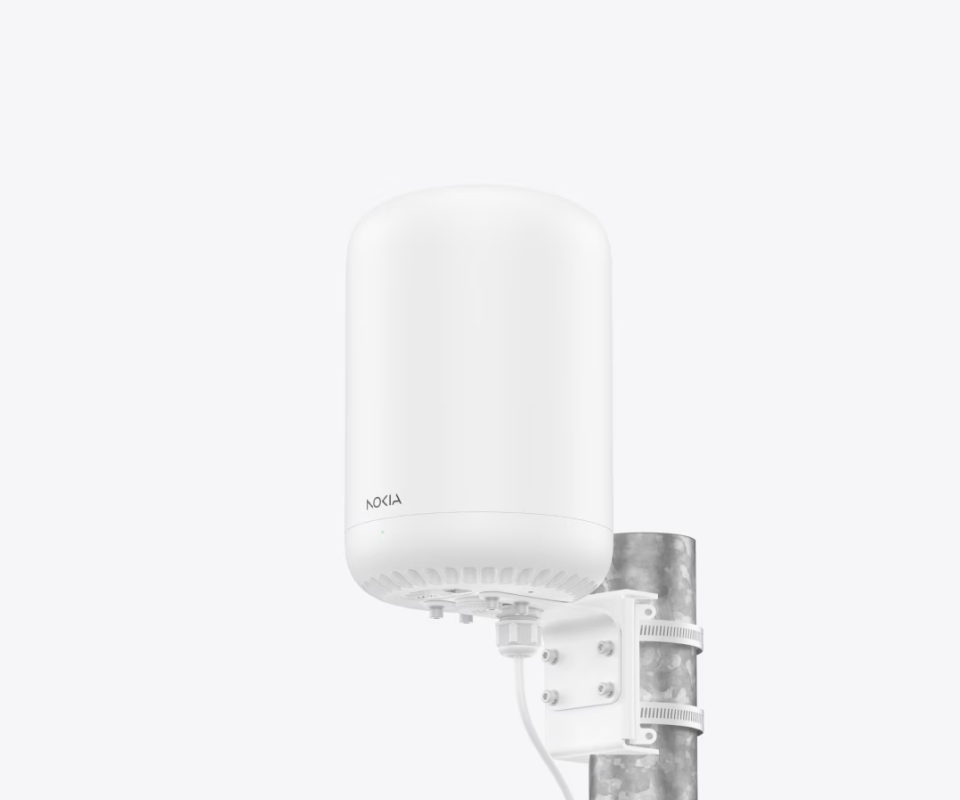

- Pole / rooftop mount kit: Heavy-duty bracket hardware with metallic hose clamps engineered to attach the receiver to rooftop masts, dedicated antenna poles, or service pipes to gain vertical elevation.

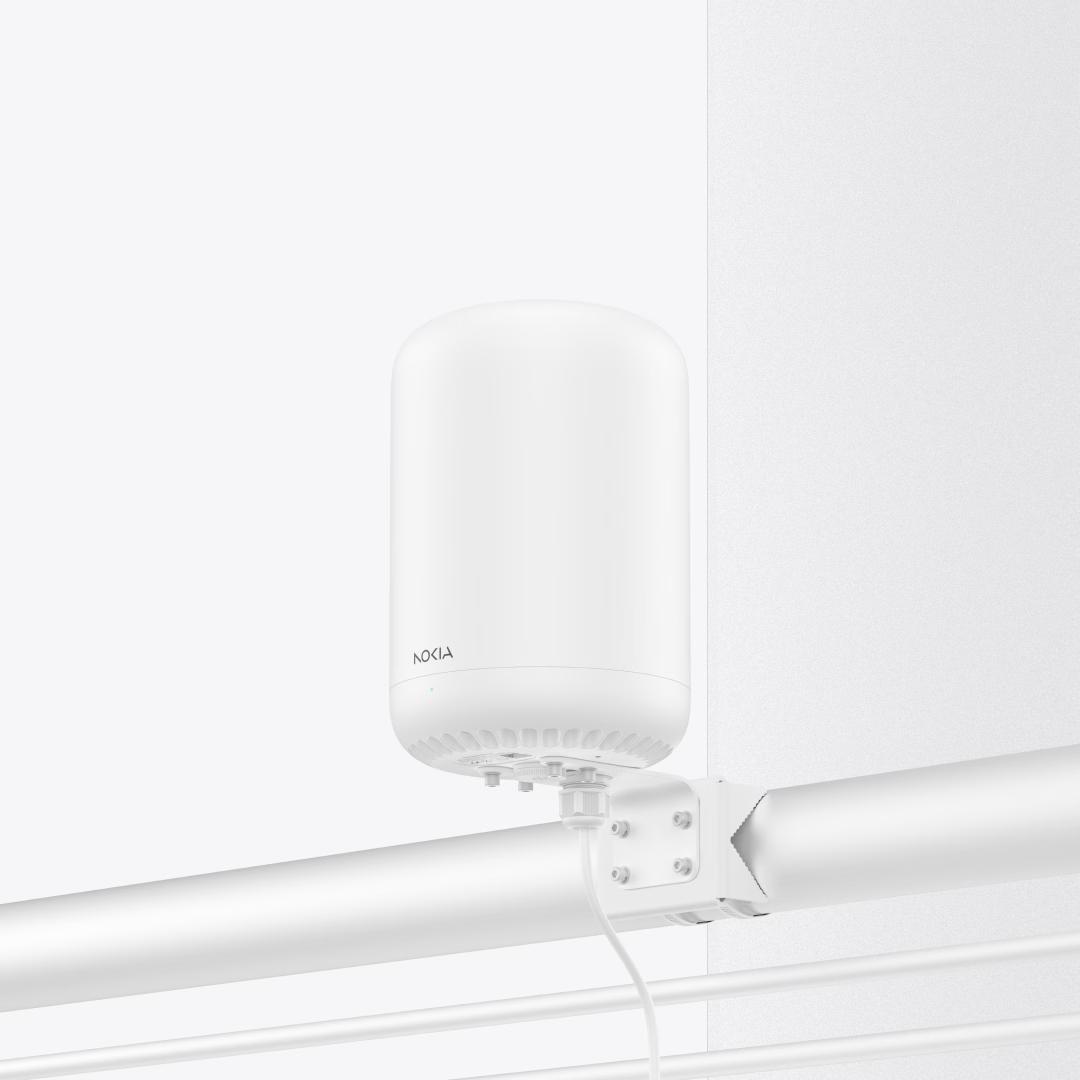

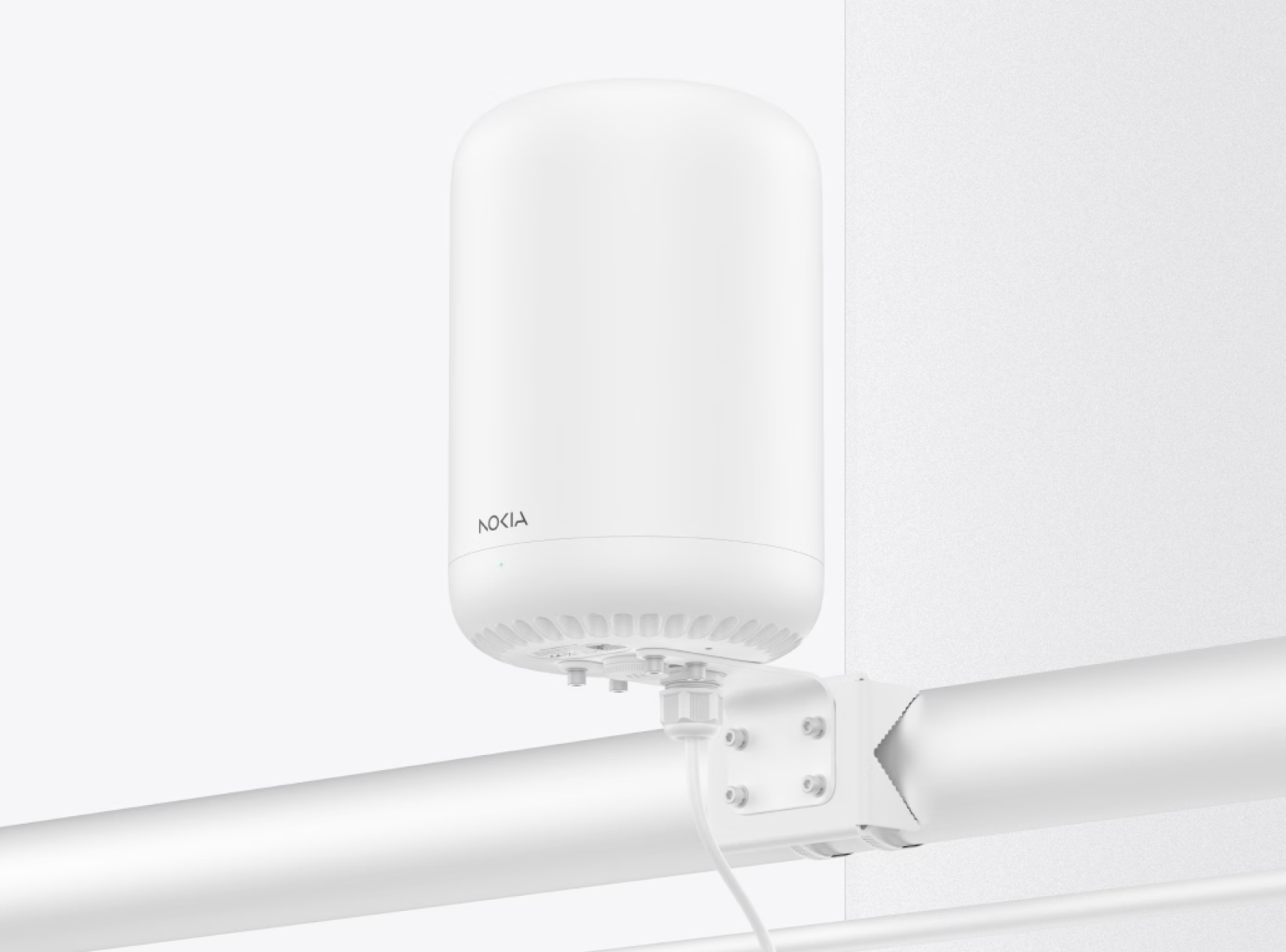

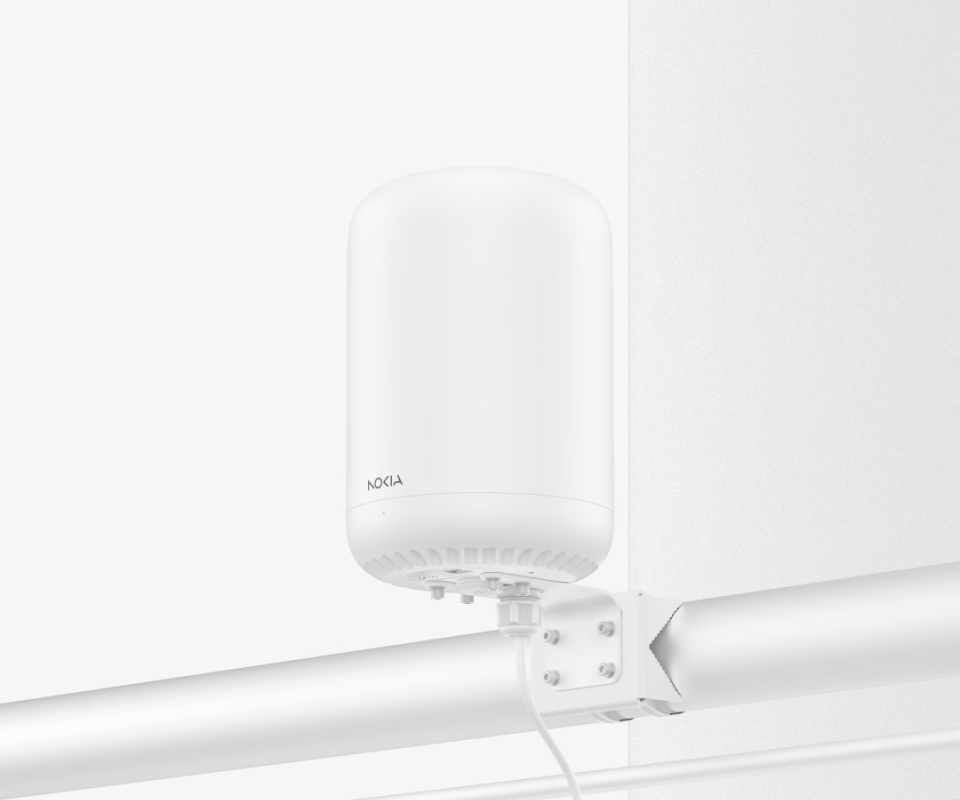

- Balcony rail mount kit: Provides non-destructive clamping hardware designed to attach the receiver securely to vertical or horizontal balcony railings, making it ideal for multi-dwelling units (MDUs) and apartment structures.
Robust & reliable
Durable design
IP66 weatherproof rating
Fully sealed, industrial-grade enclosure engineered to withstand torrential rain, driving dust storms, and heavy snow.
Temperature resilience
Operates in extreme climates, from sub-zero freezing winters down to -40°C (-40°F) up to scorching summer peaks of +55°C (131°F).
Industrial UV resistance
Coated in high-stability, UV-protected polycarbonate resin that prevents material degradation, cracking, and chalking.
Zero-maintenance
A completely fanless, solid-state design with zero moving parts, minimizing mechanical wear and tear overtime.
Smart surge protection
Integrated internal electrical surge protection designed to safeguard sensitive internal rf components against voltage spikes.
Wind-load optimization
Engineered to minimize movement from strong winds, ensuring the high-gain antenna alignment remains locked onto target signals.
Built for superior performance and to connect you almost anywhere
01
02
03
04
Features & specifications

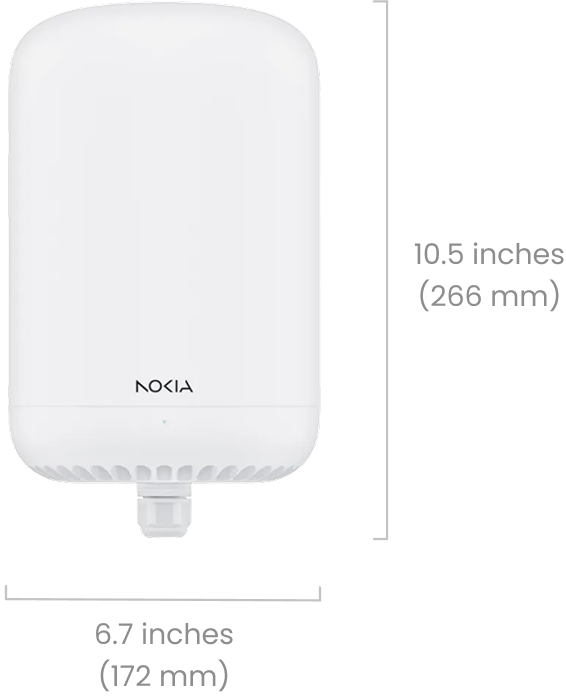

Dimensions & weight
Diameter: 172 mm (6.7 in)
Height: 266 mm (10.5 in)
Weight: 2200 g (4.8 lb)
Chipset
Powered by Qualcomm Dragonwing™ FWA Gen 3
SIM type
Single SIM (1x Nano 4FF slot, weather-sealed)
eSIM support
Carrier certified
Certified across global operator networks
Form factor
IP66 compliant outdoor weather-proof chassis
Network connectivity
Qualcomm Dragonwing FWA Gen 3
Qualcomm X75 modem
5G NR mmWave (FR2)
sub-6 GHz (FR1) fallback
5G NSA/SA & LTE
eSIM (PCB ready for 8RX options)
3GPP Release 16 compliant
Power
Power over Ethernet (PoE) delivery to home network (22V max)
Ports
1x 2.5 GbE RJ45 Port (PoE support)
1x USB 3.1 type C data/serial
Bluetooth 5.0
Cellular technology
3GPP Release 17
5G NR
4G LTE (DL 20/UL 18)
Up to 800MHz carrier aggregation
EN-DC/NR C
Modulation: 256 QAM (DL) / 256 QAM (UL)
FR2 modulation: 256 QAM (DL) / 64 QAM (UL)
Supports Dynamic spectrum sharing (DSS)
Bands supported
5G FR2 mmWave: n257, n258, n260, n261
Sub 6 (FDD): n1, n3, n5, n7, n8, n20, n28
Sub 6 (TDD): n38, n40, n41, n77, n78
4G LTE DL 20/UL 18:
FDD: B1, B3, B5, B7, B8, B20, B28
TDD: B38, B40, B41, B42, B4
Antenna gain
27 dBi high-gain antenna array
360° horizontal coverage with automated electronic alignment
-5° to +30° vertical field of view (Elevation coverage)
Non-line-of-sight (NLOS) stabilization
Deployment & mounting options
Wall mount
Corner wall mount
Pole mount
Balcony/sill mount brackets
Security features
Built-in firewall
Malicious protection - Built in Anti-DoS (Denial of Service)
Networking integration
Direct Ethernet link to home gateways or routers
Remote management
TR - 069 remote management security
TR - 369
TR - 181 ACS
TR - 141 KPI management
WebUI for management and configuration of device
Dimensions & weight
Diameter: 172 mm (6.7 in)
Height: 266 mm (10.5 in)
Weight: 2200 g (4.8 lb)
